1 Phase Control-/ Isolating Transformer, Safety Transformer, rail mounting versionSTN 25 - 250VA IEC/DIN EN61558-2-2 /-4 /-6 and UL1446

overviewtechnical dataPDF Datasheet

1 phase control transformer

according to IEC/EN61558-2-2 for power supply of control circuits in machinery, terminal blocks (VDE0113/ EN60204)

Isolating transformer

according to IEC/EN61558-2-4 for general applications, e.g. electric (galvanic) isolation for devices according to VDE0700/ EN60335.

Safety transformer

according to IEC/EN61558-2-6 for general applications with double or enhanced insulation and max. 50V output voltage, e.g. electric (galvanic) isolation for devices according to VDE0805/EN60950.

Specifications

  • Due to the use of high quality insulating materials and special insulation design, STN series can be used as control-, isolating or safety transformer.
  • Our UL insulation system guarantees global application possibilities.
  • Inrush currents and short circuit behaviour are optimised for use with motor-circuit switches, especially equipped with primary circuit thermal or magentic switching functions.
  • Transformers are fully vacuum impregnated.
  • Screw terminals contact proof according to VBG4
  • For voltage adjusting purposes, primary winding offers taps at ±5% of nominal input voltage.
  • Transformers are protection class I ready.
  • 2 blade terminals 6.3 x 0.8 for ground wire connection.
  • Mounting via angle brackets, any mounting position or angle possible.







1 Phase Control-/ Isolating Transformer, Safety Transformer

TS35 DIN rail mounting version IEC/EN61558-2-2/-4/-6 UL1446

Input voltage 100 V … 600 V +/-5%
Output voltage 12 V … 600 V
Rated frequency 50/60 Hz
Output power 25 VA … 250 VA
Max. ambient temperature 40°C
UL insulation system B3 Standard
Insulation class (IEC85) B 130°C
Fire protection class UL94HB (V-0 possible)
Open transformer
degree of protection		 IP00
Fire protection class I ready
  • 2 blade terminals 6.3 x 0.8mm
  • TS35 DIN rail mounting
  • Screw terminals contact proof according to BGV A3
  • Transformer completely vacuum impregnated

Overview: PRI 230V / SEK 24V

Rated
power
VA
Short-time
power
at cos (phi) 0.5
VA
Short
circuit
voltage
Uk %
Rated  input
current
at 230V
A
Transformer safety
switch
e.g. PKZM0
Dimensions
approx. mm
Cu
weight
KG
Total
weight
KG
Type and
Ordering No.

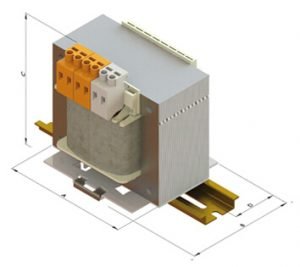

A B C D
25 56 9,56 0,14 0,1-0,16/ 0,16 66 79 69 35 0,14 0,75 STN002230024
50 107 9,85 0,28 0,26-0,4/ 0,35 78 79 78 35 0,25 1,1 STN005230024
75 163 9,77 0,4 0,4-0,63/ 0,5 84 79 83 35 0,27 1,35 STN007230024
100 235 8,4 0,53 0,4-0,63/ 0,6 84 84 83 35 0,3 2 STN010230024
160 360 8,22 0,82 0,63-1/ 0,9 96 79 92 35 0,46 2,25 STN016230024
200 478 7,1 1 1-1,6/ 1,1 96 87 92 39 0,55 2,85 STN020230024
250 645 6,36 1,24 1-1,6/ 1,35 96 101 92 48 0,57 3,6 STN025230024

Overview: PRI 400V / SEK 24V

Rated
power
VA
Short-time
power
at cos (phi) 0.5
VA
Short
circuit
voltage
Uk %
Rated  input
current
at 230V
A
Transformer safety
switch
e.g. PKZM0
Dimensions
approx. mm
Cu
weight
KG
Total
weight
KG
Type and
Ordering No.
A B C D
25 55 9,58 0,09 0,1-0,16/ 0,1 66 79 69 35 0,14 0,75 STN002230024
50 106 9,98 0,16 0,16-0,25/ 0,17 78 79 78 35 0,25 1,1 STN005230024
75 165 9,49 0,23 0,16-0,25/ 0,24 84 79 83 35 0,27 1,35 STN007230024
100 233 8,5 0,3 0,25-0,4/ 0,35 84 84 83 35 0,3 2 STN010230024
160 358 8,35 0,47 0,4-0,63/ 0,55 96 79 92 35 0,46 2,25 STN016230024
200 480 7 0,57 0,4-0,63/ 0,63 96 87 92 39 0,55 2,85 STN020230024
250 647 6,18 0,71 0,63-1/ 0,8 96 101 92 48 0,57 3,6 STN025230024

Overview: PRI 400V / SEK 230V

Rated
power
VA
Short-time
power
at cos (phi) 0.5
VA
Short
circuit
voltage
Uk %
Rated  input
current
at 230V
A
Transformer safety
switch
e.g. PKZM0
Dimensions
approx. mm
Cu
weight
KG
Total
weight
KG
Type and
Ordering No.
A B C D
25 55 9,26 0,09 0,1-0,16/ 0,1 66 79 69 35 0,14 0,75 STN002400230
50 112 9,15 0,16 0,16-0,25/ 0,17 78 79 78 35 0,25 1,1 STN005400230
75 166 9,1 0,23 0,16-0,25/ 0,24 84 79 83 35 0,27 1,35 STN007400230
100 244 7,8 0,3 0,25-0,4/ 0,35 84 84 83 35 0,3 2 STN010400230
160 370 7,7 0,47 0,4-0,63/ 0,55 96 79 92 35 0,46 2,25 STN016400230
200 482 7,15 0,57 0,4-0,63/ 0,63 96 87 92 39 0,55 2,85 STN020400230
250 670 5,6 0,71 0,63-1/ 0,8 96 101 92 48 0,57 3,6 STN025400230

To the data sheet
