Typical applications
3 phase isolating transformer according to IEC/EN61558-2-4 for general applications, e.g. for providing electrical (galvanic) isolation according to VDE0700/EN60335 regulations or network supply transformer (e.g. TN network system).
Specifications
3 phase isolating transformer according to EN61558-2-4. protection class I ready. Due to innovative vacuum impregnation in polyester varnish, the noise level is extraordinary low. Screw terminals are contact proof according to VBG4.
Standard switching matrix: Yyn0 (max. typical star load of phase current: approx. 10%). Switching matrix: Please note the distinction between different voltages (e.g. phase voltage, line voltage). For further information, don´t hesitate to contact us!
Any user-defined mounting position is possible.
3 phase isolating transformer, vertical mounting version
according to IEC/EN61558-2-4
| Voltage range / Input, Output | 100 V … 550 V | |
| Rated frequency | 50/60 Hz | |
| Power Range | 100VA … 2,0kVA | |
| Max. ambient temperature | 40°C | |
| UL-Insulation system (optional) | OBJY2.E181051 |  |
| Insulation class (IEC85) | B 130°C |  |
| Fire protection class | UL94HB (V-0 möglich) | |
| Open transformer – degree of protection | IP00 | |
| Protection class (ready) | I | |
- Standard switching matrix Yyn0
(typical star load approx. 10%) - Transformer completely vacuum impregnated
- Feeder clamps contact proof according to VBG4
- Ready for vertical mounting – including angle brackets
|
Rated
power
kVA |

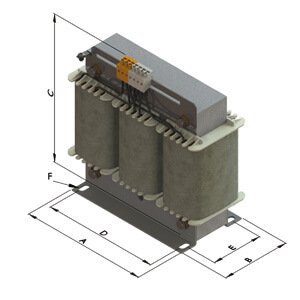

Dimensions approx. mm |
Copper weight
KG |
Total weight
KG |
Size | Type | |||||
|
A
|
B
|
C
|
D
|
E
|
F
|
|||||
|
0,10
|
120
|
65
|
110
|
90
|
39
|
4,8×9,0
|
0,60
|
1,80
|
3UI 60/21 |
DTS0010
|
| 0,16 | 120 |
75
|
110
|
90
|
49 |
4,8×9,0
|
0,80 |
2,40
|
3UI 60/31 | DTS0016 |
| 0,25 | 150 |
73
|
132
|
113
|
49 |
5,8×11,0
|
1,30 |
3,90
|
3UI 75/26 | DTS0025 |
|
0,40
|
150 | 88 |
132
|
113
|
64 |
5,8×11,0
|
1,60 |
5,70
|
3UI 75/41,5 | DTS0040 |
|
0,50
|
180
|
80
|
157
|
136
|
56 |
7,0×13,0
|
2,20
|
6,60
|
3UI 90/31 | DTS0050 |
|
0,63
|
180 | 90 |
157
|
136
|
66
|
7,0×13,0
|
2,80
|
8,00 | 3UI 90/41,5 | DTS0063 |
|
0,80
|
180
|
100 |
157
|
136 | 76 |
7,0×13,0
|
3,00
|
9,90 | 3UI 90/51,5 | DTS0080 |
|
1,00
|
230 |
92
|
202
|
176
|
71
|
7,0×13,0
|
4,60
|
13,50
|
3UI 114/40 | DTS0100 |
|
1,25
|
230
|
92 | 202 |
176
|
71 |
7,0×13,0
|
5,30
|
14,20
|
3UI 114/40 | DTS0125 |
| 1,60 | 245 | 91 | 207 | 185 | 71 | 9,0×13,0 | 5,70 | 15,30 | 3UI 120/41 | DTS0160 |

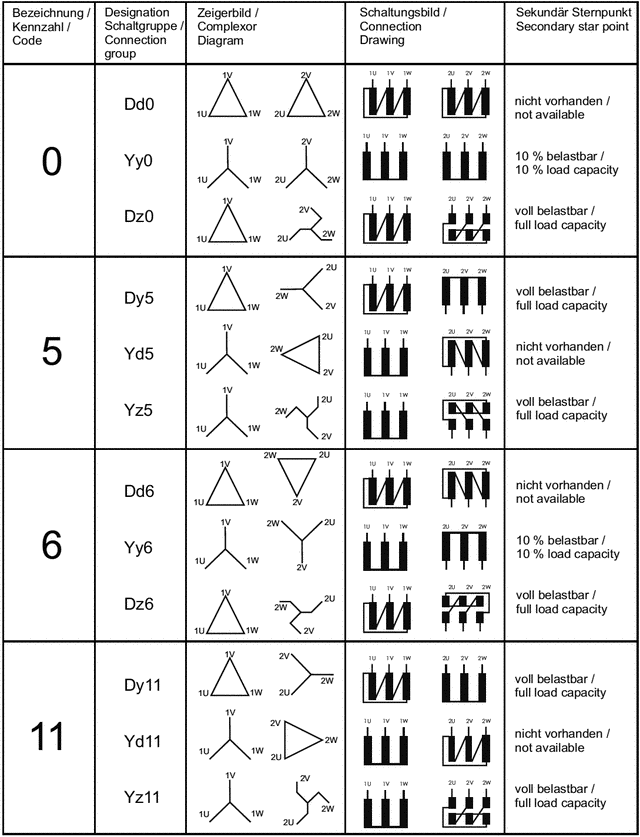

3 Phase Isolating Transformers Circuits and Circuit Designs
3 phase isolation transformers offer various possibilities to connect PRIMARY and SECUNDARY winding.
Each design allows specific transformer characteristics. See the following table for preferred circuit designs.
- Neutral wire “N“ or “n”. Percentage of neutral wire current allways refers to nominal current of phase conductor.
- Please mind:
- Secundary star circuit allows load on neutral wire.
- Parallel connection of transformers must comply to following criteria:
- Nominal voltage and rated frequency
- Circuit design
- Short circuit voltages
- Ratio of rated loads should not extend 3:1
